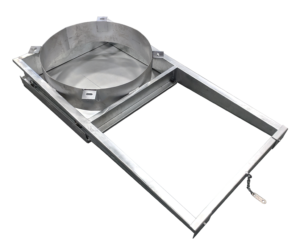

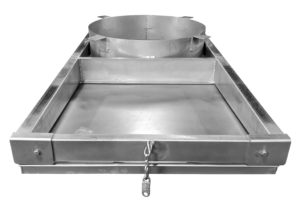

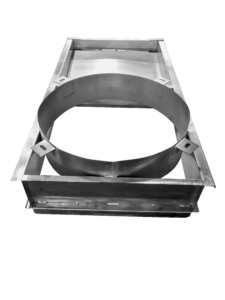

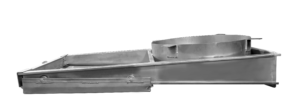

FIRE DISCHARGE GATE
14 Gauge aluminized steel open-end rolling discharge gate with a 165° Fahrenheit, fusible link to hold open door on an inclined rack at the bottom of the chute. The door is of “B” label construction and is equipped with a fusible link designed automatically to close if the ambient temperature reaches 165°

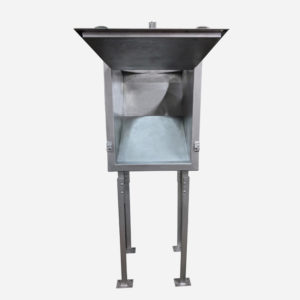

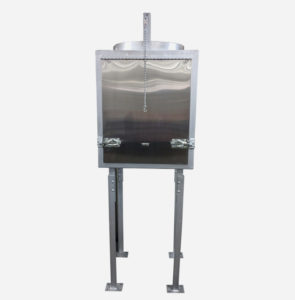

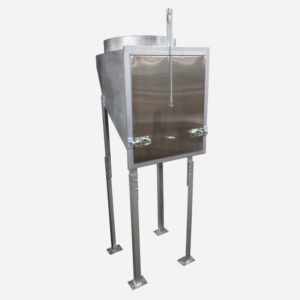

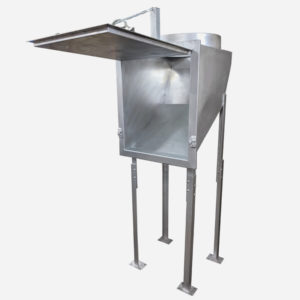

LINEN DISCHARGE HOPPER
Hopper type discharge assembly is a self-closing top hinged, Classified ‘UL’ B labeled door held in the open position with a “UL” approved 165° Fahrenheit fusible link. Supporting steel angles are provided to complete the installation.

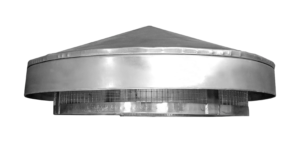

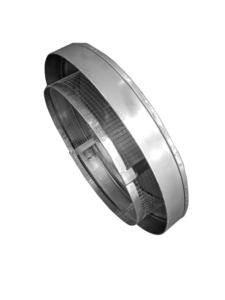

VENT CAP
Aluminium explosion proof vent cap as per NFPA-82.

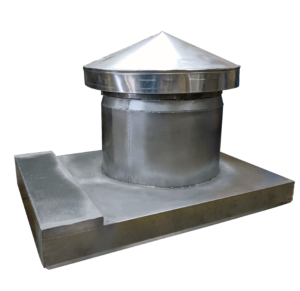

Galvanized roof cap flashing with a 24″∅ galvanized storm collar.

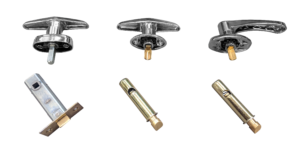

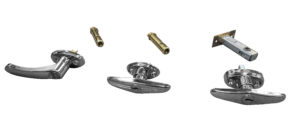

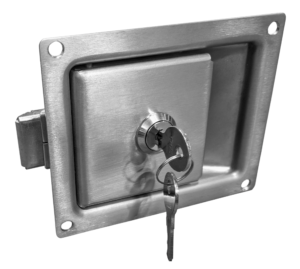

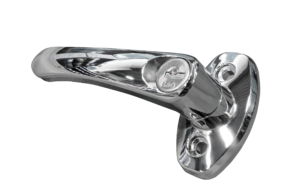

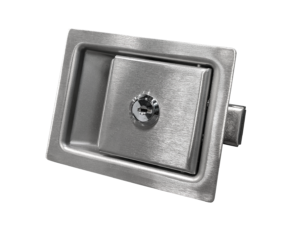

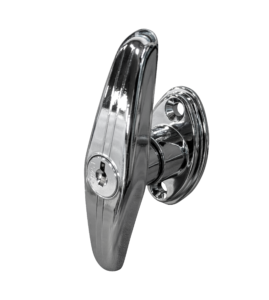

DOOR PARTS
ASTM A 240/A 240M, Doors are fabricated with type 304 stainless steel, stainless steel hinges, with a self-closing, self-latching quite door closing function. A.D.A., 5-lbs. maximum operating force with hardware (lever) that does not required a tight grasp, pinching or twisting of the wrist.
